GrowLite Double Ended Reflector VS Radiant Double Ended Reflector

DE lighting systems use a high-intensity bulb with connectors on either end that snap the bulb into place on the double-ended reflector. This is opposed to the single-ended system in which an Edison-style bulb is screwed into a socket. If you are using double-ending lighting and opt to use reflectors (as is recommended in almost all scenarios), a compatible DE reflector will have to be used.

The bulbs of a DE lighting system run between 750-1,000 watts, but are very efficient to operate. A double-ended reflector intensifies and concentrates the lighting onto the objects or plants it is illuminating instead of allowing the light to bounce up towards the ceiling where it is of little use.

DE reflectors and lights can be strung into a line that operates from one electrical source, making set up easier. The reflector and light combination produces and concentrates more ultraviolet and infrared light for the plants because they operate at a higher frequency than SE (single-ended lighting).

Double-ended reflectors come in a variety of styles and sizes, including adjustable-wing style reflectors, air-cooled models, and non-air-cooled, but all work on the same principle of reflecting and concentrating the light downward.

Because they concentrate and intensify the light, double-ended reflectors make a grow lighting system more effective and cost efficient. Open-hood, non-vented reflectors will emit more heat from the lamp than the air-cooled models, so this is something to keep in mind when designing your room.
Patented Concealed Vacuum Airflow Technology® (CVAT) maximizes the reflector's photometric performance and thermal dissipation
Includes 4-way, field-selectable 8" removable flanges, solid plates, and louvered plates for fully sealed air-cooled and non air-cooled operations
Redesigned sockets make re-lamping easy
Removable 1/8" thick tempered glass door for optional air-cooled or non air-cooled operation
Durable black powder coated finish

SPECIFICATIONS
Constructed of heavy-duty 22 gauge steel
Removable door for easy lamp access and cleaning
Standard with 15’ cord and ballast plug
One (1) pair of V-hooks for mounting
315 CMH / 600-1000W HPS DE standard or high frequency lamps
ETL Listed for damp location
Five (5) year warranty
Dimensions: L 17.5" x W 10.5" x D 9.8"
(Add 5" if 8" ducts are used)
Packaged Weight: 18.6 lbs / 8.4 kgs
Installed Weight: 16.6 lbs / 7.5 kgs

Radiant Double Ended (DE) Reflector

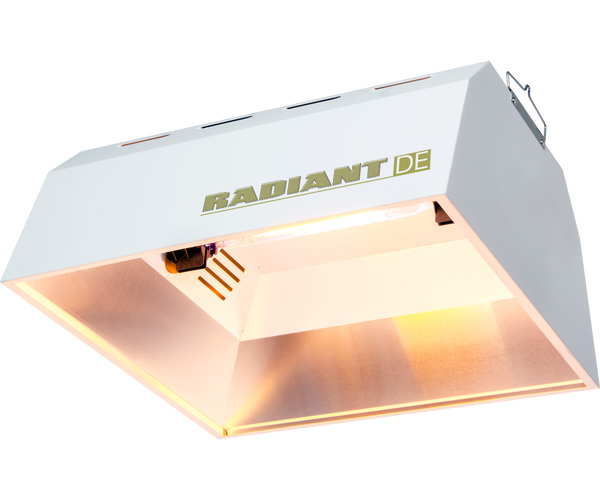

Radiant DE Reflector Image
With a patented double-wall design and a generous reflective cavity, this HydroFarm RDUNDE Radiant DE reflector will deliver the most intense light possible to your plants while keeping your grow area temperature cool. Use the fully assembled fixture with a HPS 1000-watt double-ended lamp and connect the 15-foot cord to the appropriate ballast (lamp and ballast sold separately). The Radiant DE reflector will provide years of dependable growing performance, guaranteed!

Advanced European reflector design offers a balanced light spread and wider footprint
Comes with instructions, lighting recommendations, and a cable tie
Includes a 15-foot power cord and integrated mounting hangers
Easy re-lamping with re-designed K12x30S sockets
Features a patent-pending ridge vent system
For use with double ended HPS lamps only
Not lens compatible
